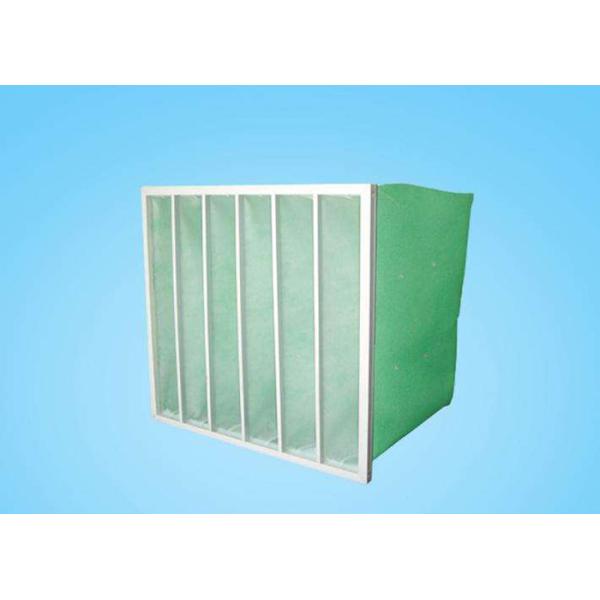

Air Conditioning Bag Filter Fiberglass Pocket Filters
| Principle |
Vacuum filtration |
Use: |
Air filtration |
| Style: |
Bag |
Performance: |
Precision filtration |
| Suitable |
Air |
Nature |
High hygiene requirements |
| Material |
Fiber |
Brand |
OEM |
| Type |
New |
Application |
Chemical, pharmaceutical, automotive, light industry, food |
| Weight |
Standard |
Size |
Standard |
Description
The bag filter has large effective filtering area, large dust holding capacity, small resistance and large ventilation. The frame and the support frame can be reused. When the filter is replaced, only the filter bag needs to be replaced, which is convenient and quick, and greatly reduces the running cost. It is widely used in the filtration systems of electronics, pharmaceutical, medical, food and other industries. It is the best medium efficiency filter at present.
Application
It can be used for the intermediate filtration of the air conditioning system to protect the lower-stage filter and the system itself in the system. In places where the air purification and cleanliness requirements are not strict, the air treated by the medium-efficiency filter can be directly sent to the user. The aluminum frame bag filter adopts high-quality synthetic fiber or imported glass fiber as the filter material, aluminum alloy profile frame and internal sprayed cold wire drawing support frame.
bag filters are designed for use in most commercial or industrial HVAC systems where medium to high efficiency filtration is required. bags are available in a variety of standard and odd sizes in four different efficiencies: 45-50%, 60-65%, 80-85%, and 90-95% with a MERV rating of 10 to 14. Each filter pocket is attached to a 26 gauge galvanized steel frame that is in turn inserted and locked into a 24 gauge galvanized steel double turned header. This rugged assembly prevents warping and provides an open filtering area of not less than 90%. Each pocket is designed to allow full inflation while maintaining adequate air exit space between adjacent pockets. Each pocket is divided into channels by “span-link” stitching which gives the pocket its unique configuration. The bag filter is available in either synthetic (recommended) or micro-glass media.
Size
| Model |
Outside Dimensions
(mm)
|
Rated air flow
(m3/h)
|
Resistance |
Efficiency
(class)
|
Color |
Pockets |
| JJ-MD53 |
495×295×500mm
20″×12″×20″
|
1000m3/h |
50Pa F5
55Pa F6
60Pa F7
65Pa F8
70Pa F9
|
40-50% F5
60-70% F6
75-85% F7
85-95% F8
95- 98% F9
|
White
Orange
Green
Pink
Yellow
|
5 |
| JJ-MID55 |
495×495×500mm
20″×20″×20″
|
1800m3/h |
5 |
| JJ-MID63 |
595×295×500mm
24″×12″×20″
|
1300m3/h |
6 |
| JJ-MID65 |
595×495×500mm
24″×20″×20″
|
2200m3/h |
6 |
| JJ-MID66 |
595×595×500mm
24″×24″×20″
|
2600m3/h |
8 |
| JJ-MID53 |
495×295×600mm
20″×12″×24″
|
1200m3/h |
5 |
| JJ-MID55 |
495×495×600mm
20″×20″×24″
|
2200m3/h |
5 |
| JJ-MID63 |
595×295×600mm
24″×12″×24″
|
1600m3/h |
6 |
| JJ-MID65 |
595×495×600mm
24″×20″×24″
|
2700m3/h |
6 |
| JJ-MID66 |
595×595×600mm
24″×24″×24″
|
3200m3/h |
8 |
